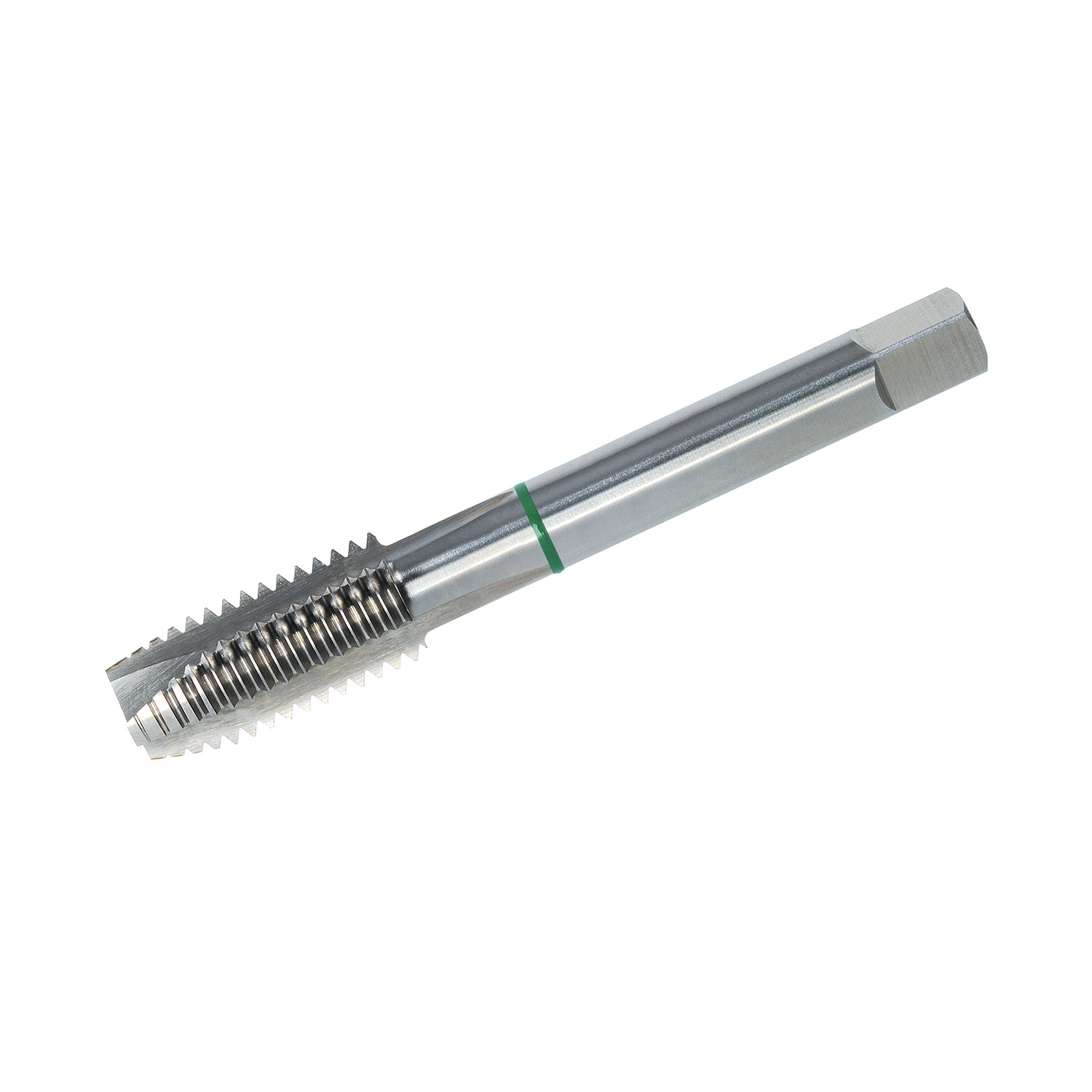

VÖLKEL machine tap GREEN RING JIS B-4430, precision tool for internal thread cutting in metal
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
VÖLKEL machine tap GREEN RING JIS B-4430, precision tool for internal thread cutting in metal
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
GREEN RING

Machine Tap GREEN RING JIS B-4430 Form B HSSE - M 2.3 x 0.4

Item no. 91602

€9.90

in stock - more than 100 pieces available
Application

Application:

for general use

  • non abrasive material up to 1000 N/mm²
  • unalloyed and low alloyed steel
  • long chipping material
  • for through holes
Additional information
Type of thread metric ISO-thread
Standard JIS B-4430
Form Form B
Material HSSE
Tolerance OH1
Size M 2.3 x 0.4
Overall length (L1) 42 mm
Thread length (L2) 8 mm
Core hole diameter (D1) 1.75 mm
Shank diameter (D2) 3.0 mm
Drive connector 2.5 mm
EAN 4022835916024
Item number 91602
Type of flute straight fluted
Application for through holes
Thread standard DIN 13

Application:

for general use

  • non abrasive material up to 1000 N/mm²
  • unalloyed and low alloyed steel
  • long chipping material
  • for through holes
Die visible through a larger die.
