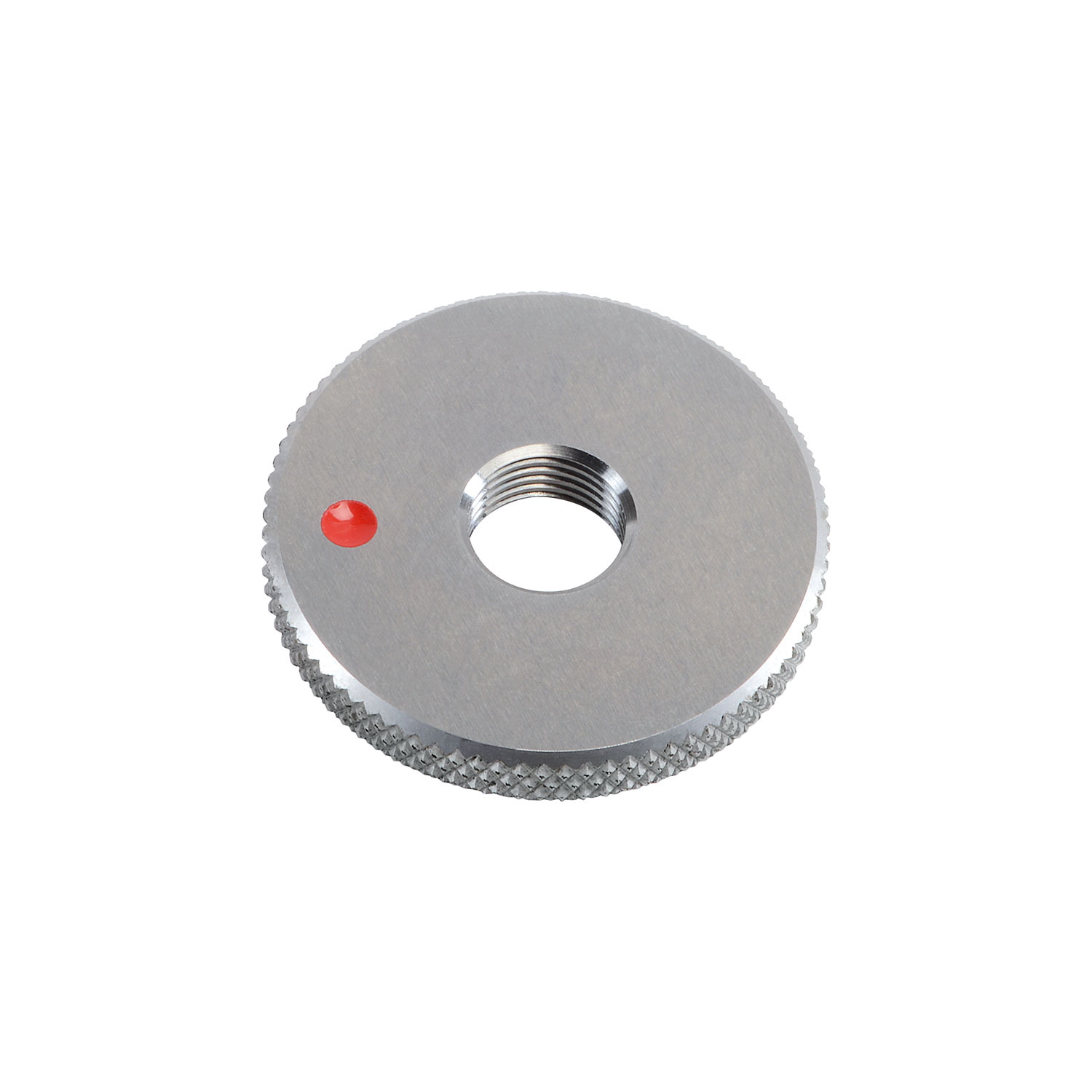

Precision thread no-go gauge by VÖLKEL with internal thread for quality control.

Precision NOGO Thread Ring Gauge (Tol. A) - G (BSP) 7/8 x 14

Item no. 16468

€97.50

in stock - more than 10 pieces available

VÖLKEL delivers exclusively to specialized dealers. Online you can buy VÖLKEL products here.

The prices are in Euro plus VAT and shipping, insurance and packaging costs.

Application

The thread NO-GO ring gauge must not screw into the part by hand more than two threads (without using excessive force). If the ring gauge can be screwed into the thread by more than two threads, the thread does not meet the desired requirements (=scrap). The no-go thread gauges are marked in red.

The reference temperature for parts and gauges is 20° Celsius.

As a manufacturer, VÖLKEL will issue a factory calibration certificate upon request (price on request). Calibrated at a measurement laboratory separate from VÖLKEL to specifications and standards (DIN, ISO, ANSI) specified for the respective specimen. Calibrated using IAC thread scanners.

Additional information

Type of thread	Pipe thread
Standard	DIN ISO 228
Tolerance	A
Size	G (BSP) 7/8 x 14
Item number	16468
Gauge dimension	DIN EN ISO 228-2
Thread standard	DIN ISO 228

The thread NO-GO ring gauge must not screw into the part by hand more than two threads (without using excessive force). If the ring gauge can be screwed into the thread by more than two threads, the thread does not meet the desired requirements (=scrap). The no-go thread gauges are marked in red.

The reference temperature for parts and gauges is 20° Celsius.

As a manufacturer, VÖLKEL will issue a factory calibration certificate upon request (price on request). Calibrated at a measurement laboratory separate from VÖLKEL to specifications and standards (DIN, ISO, ANSI) specified for the respective specimen. Calibrated using IAC thread scanners.
