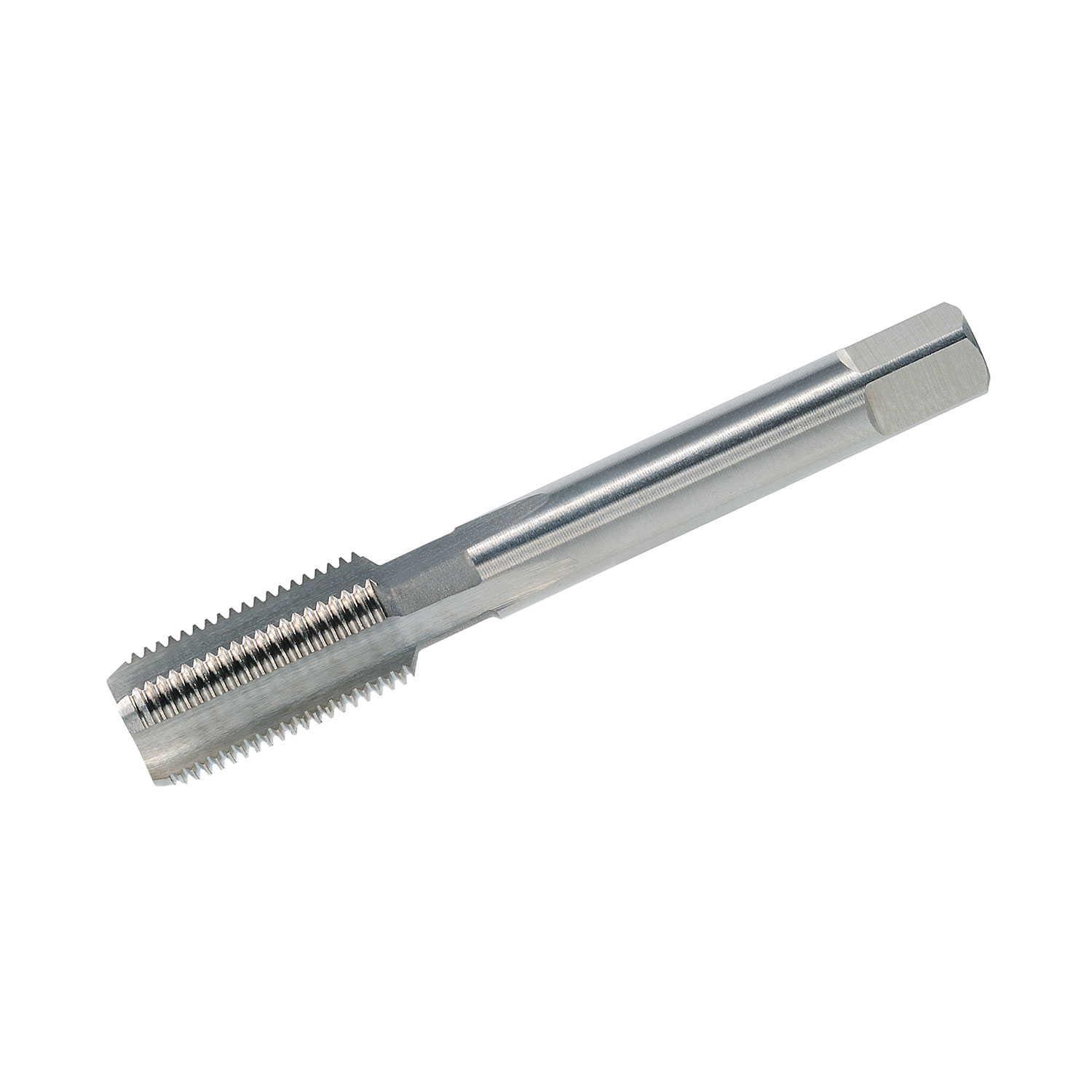

Metal thread tap by VÖLKEL with square drive and smooth shank.
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
Metal thread tap by VÖLKEL with square drive and smooth shank.
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
G (BSP) Pipe-thread

Hand Tap Finisher DIN 5157 HSS-G - G (BSP) 1.3/8 x 11

Item no. 25338-2

€96.00

in stock - more than 10 pieces available
Application

Application:

for general use

  • non abrasive material up to 900 N/mm²
  • unalloyed and low alloyed steel
  • for through and blind holes
  • for thread cutting by hand
Additional information
Type of thread Pipe thread
Standard DIN 5157
Material HSS-G
Tolerance medium
Size G (BSP) 1.3/8 x 11
Overall length (L1) 140 mm
Thread length (L2) 40 mm
Core hole diameter (D1) 41.7 mm
Shank diameter (D2) 36.0 mm
Drive connector 29.0 mm
Item number 25338-2
Type of flute straight fluted
Application for through and blind holes
Thread standard DIN ISO 228

Application:

for general use

  • non abrasive material up to 900 N/mm²
  • unalloyed and low alloyed steel
  • for through and blind holes
  • for thread cutting by hand
