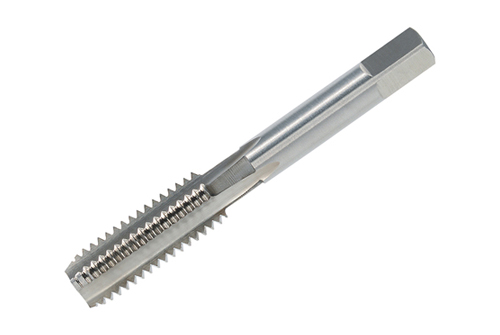

Hand Tap set of 2 pieces DIN 2181 HSS-G - UNF 5/16 x 24
Item no.
24316
€10.00
in stock - more than 100 pieces available
Application
Application:
for general use
- non abrasive material up to 900 N/mm²
- unalloyed and low alloyed steel
- for through and blind holes
- for thread cutting by hand
Additional information
| Type of thread | Unified Fine Thread |
|---|---|
| Standard | DIN 2181 |
| Material | HSS-G |
| Tolerance | 2B |
| Size | UNF 5/16 x 24 |
| Overall length (L1) | 56 mm |
| Thread length (L2) | 22 mm |
| Core hole diameter (D1) | 6.9 mm |
| Shank diameter (D2) | 6.0 mm |
| Drive connector | 4.9 mm |
| EAN | 4022835243168 |
| Item number | 24316 |
| Type of flute | straight fluted |
| Application | for through and blind holes |
| Thread standard | ANSI B 1.1 |
