Tap & Hexagon Die Nut Set for wheel studs and wheel nuts

• for workshop thread service where several related tools are required in one case
• for the stated thread range M M12x1,25-M12x1,5-M14x1,25-M14x1,5 when it matches the component being serviced
• for maintenance and repair work where internal and external thread operations must be separated by tool type
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: thread cutting, re tapping, and thread cleaning depending on condition

Note Select the individual tool by the original thread on the component and do not mix different thread systems inside one repair step.

• The set combines internal and external thread service tools for wheel-related maintenance tasks.

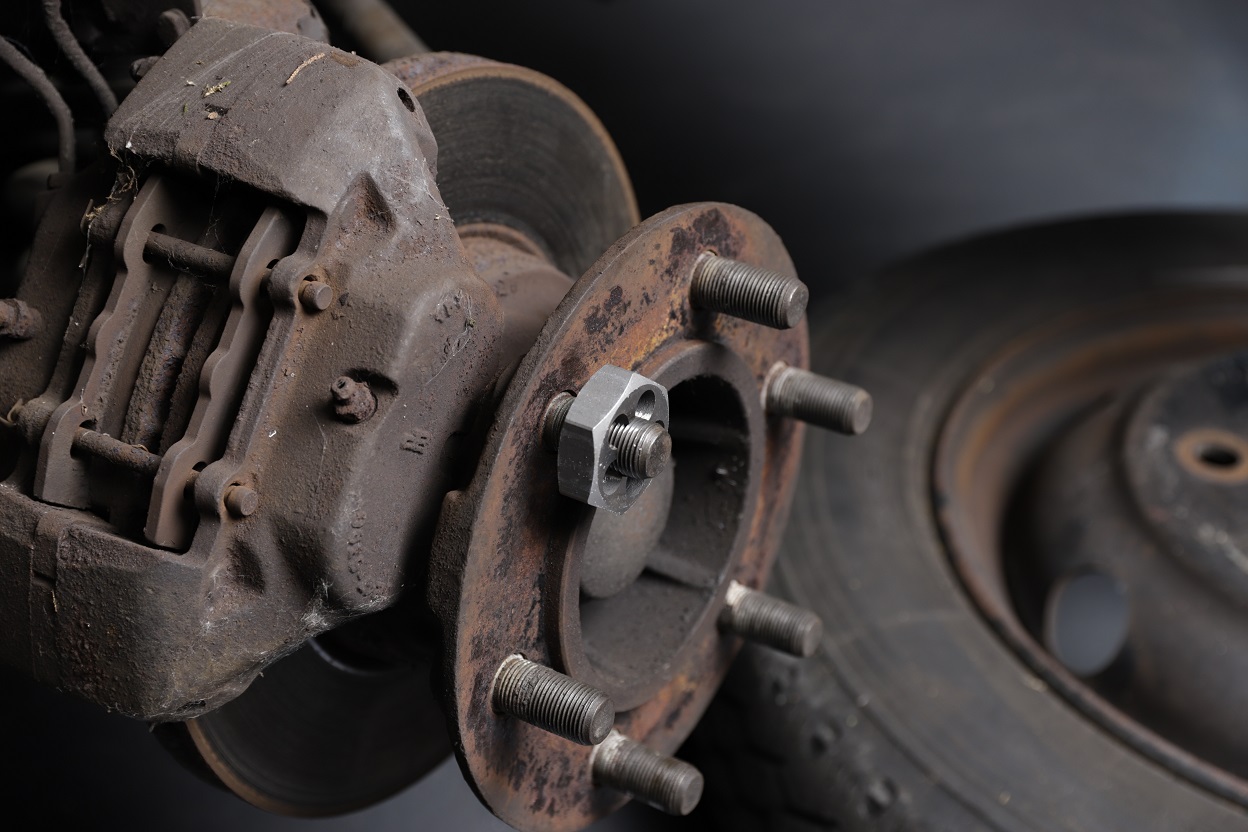

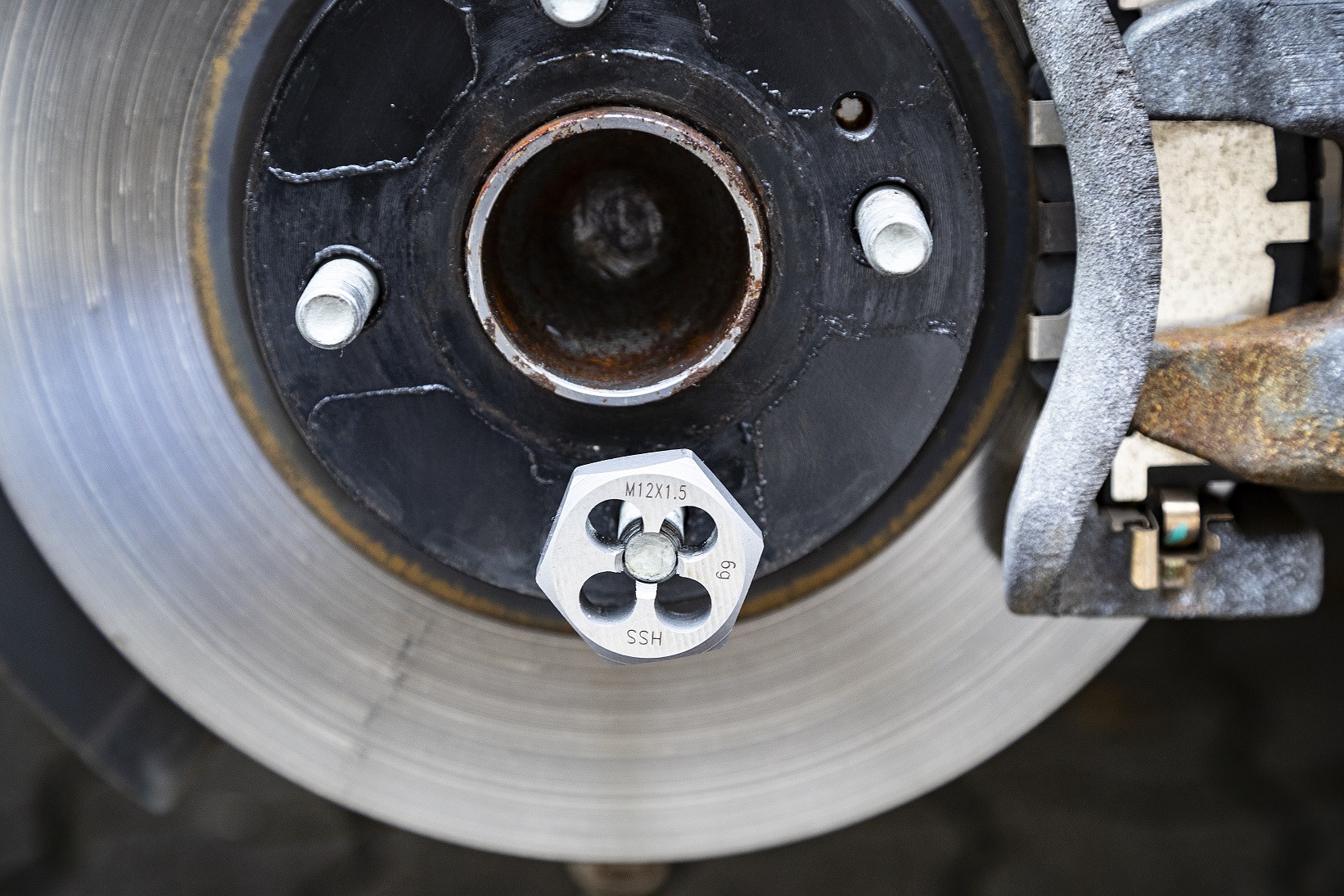

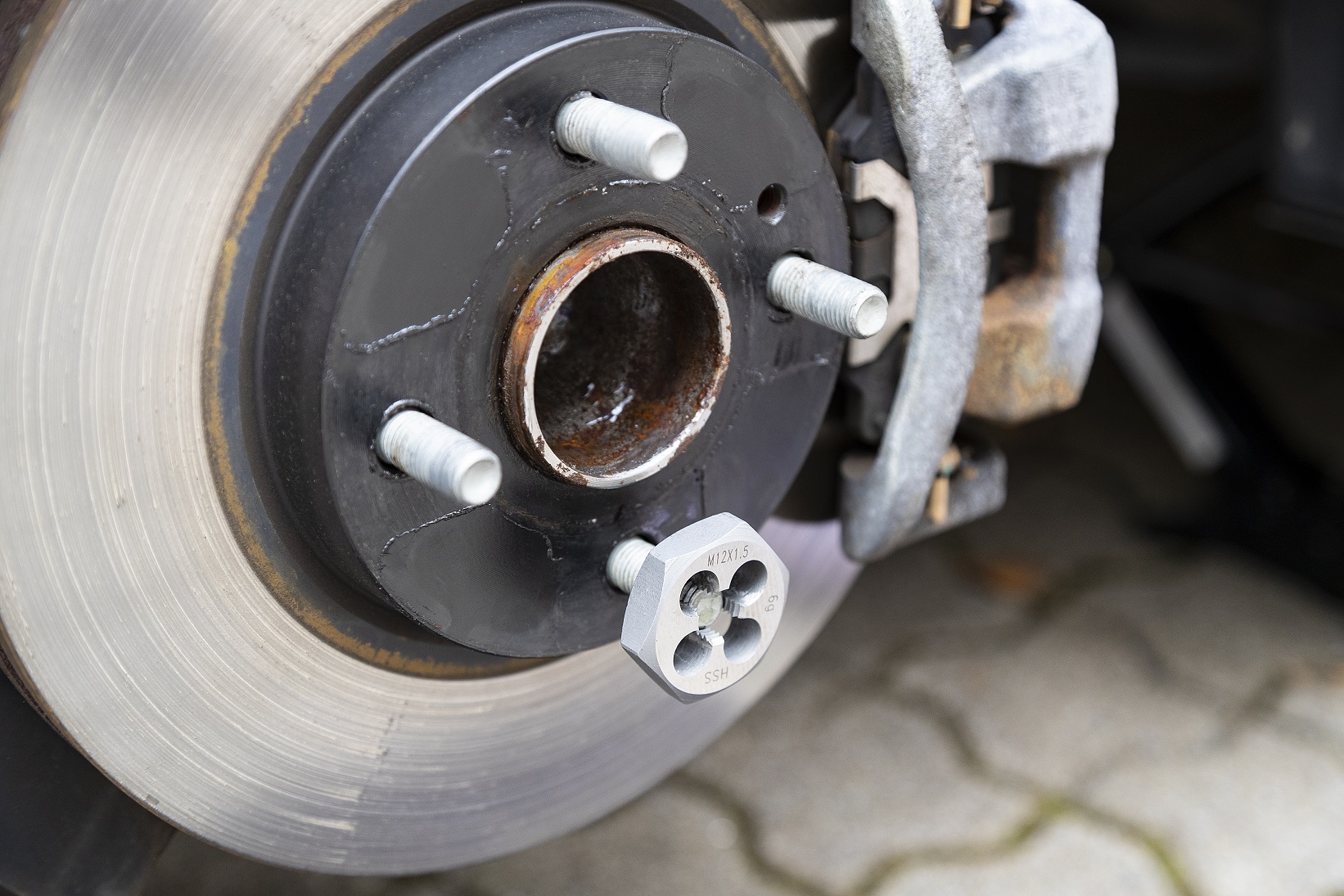

• Hexagon die nuts support external thread cleaning where wheel studs or bolts need repair work.

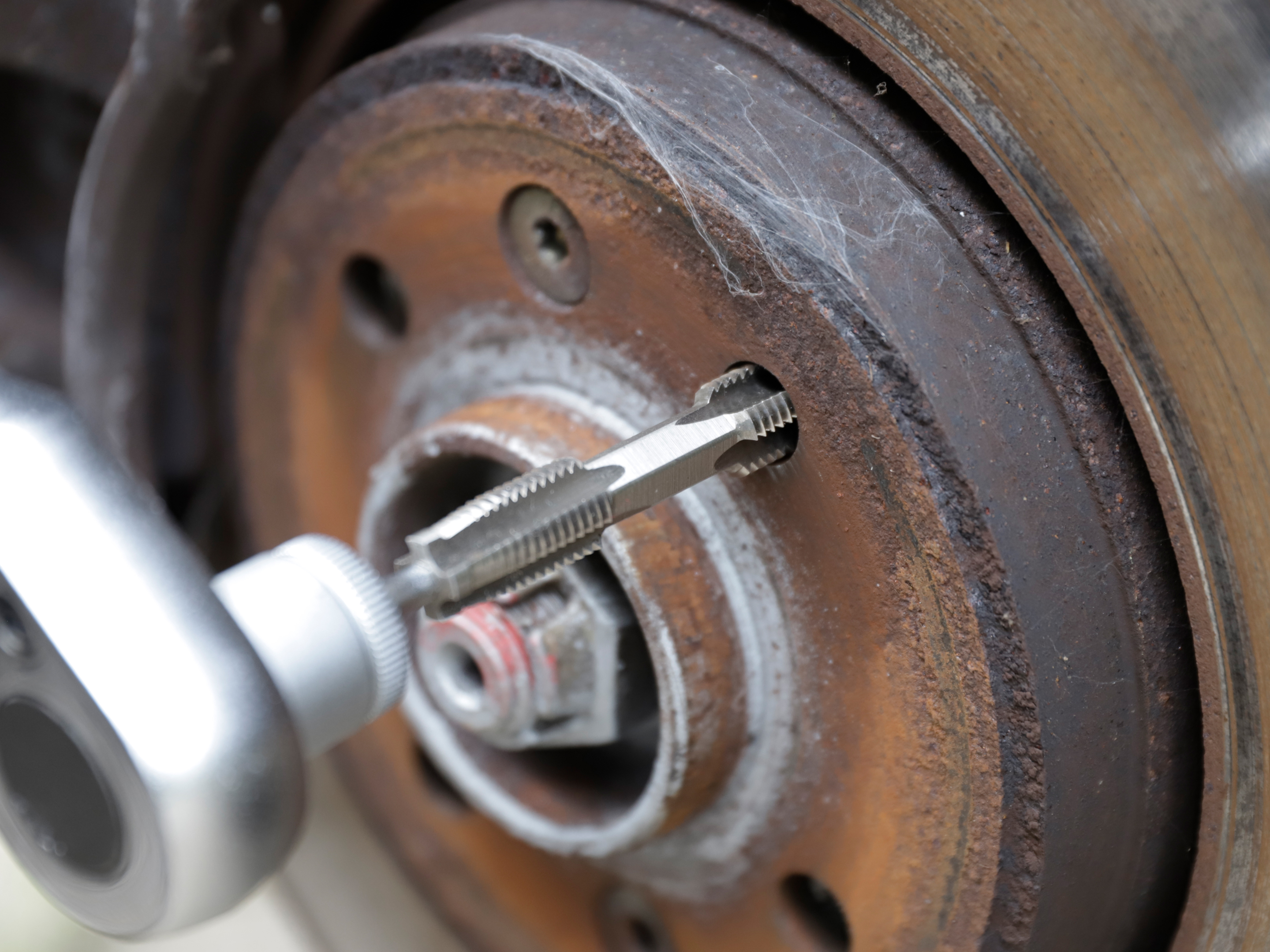

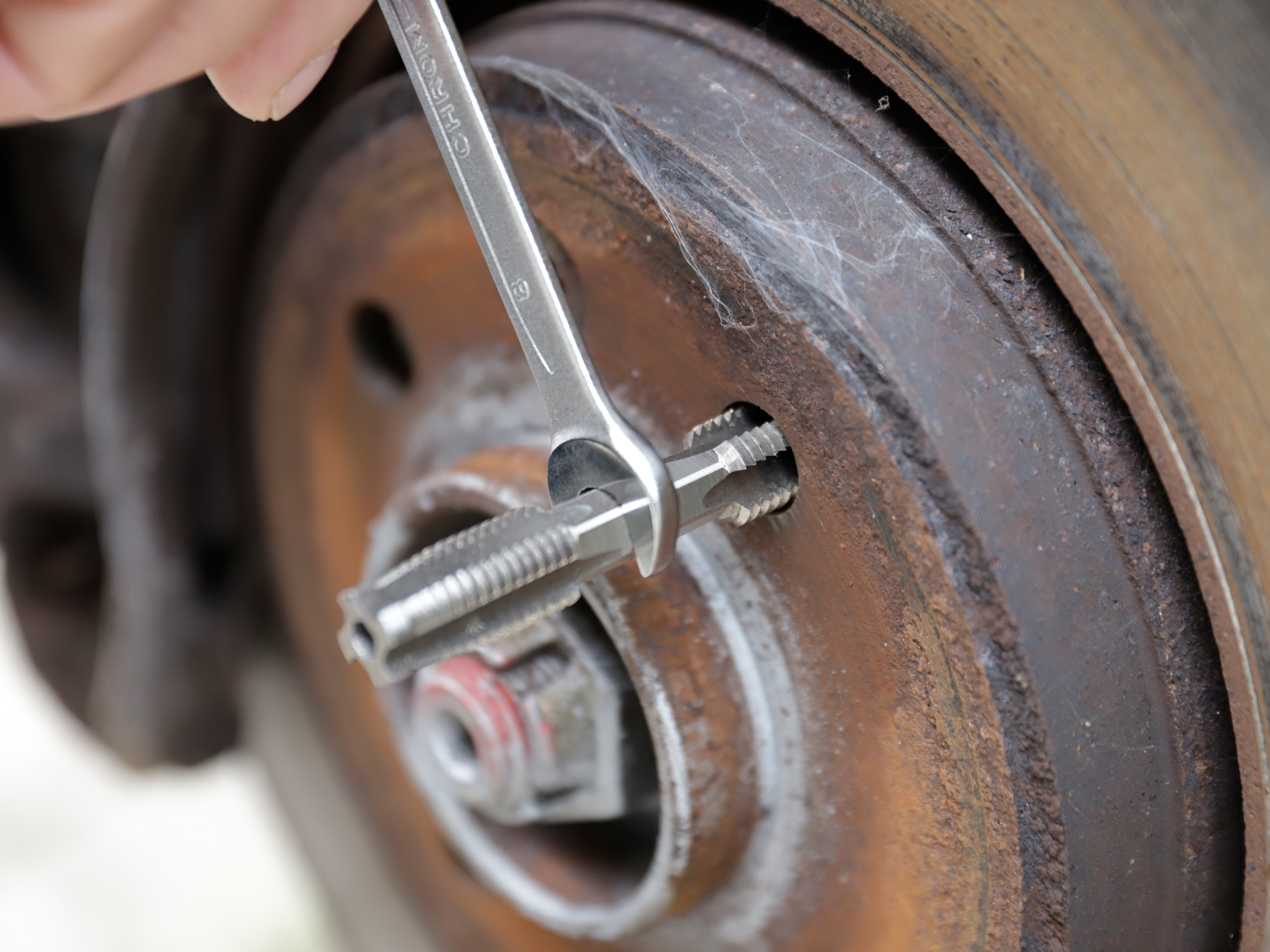

• Taps support internal thread work where the matching wheel nut or threaded hole requires service.
• Metal case packaging keeps the related components together for workshop use.

• The set is intended for the included thread sizes only, so verify the wheel stud or wheel nut thread before using a component.

1. Identify the original thread on the component before opening the set.
2. Choose the tool group for internal or external thread work.
3. Select the exact size that matches the component thread.
4. Clamp the tool in a suitable holder or drive setup.
5. Apply suitable cutting fluid for the material and repair situation.
6. Cut, re-tap, or clean the thread with controlled alignment.
7. Inspect the thread before returning the component to service.
8. Clean the tools and return them to the case.

• 1 set Tap & Hexagon Die Nut Set for wheel studs and wheel nuts
• 1 piece metall-kassette

• Product type: tap and hexagon die nut set
• Thread system: M
• Thread designation: M M12x1,25-M12x1,5-M14x1,25-M14x1,5
• Material: HSS-G
• Direction: RH
• Packaging: Metall-Kassette
• Package quantity: 1

When do you use this set?

Use it for wheel stud and wheel nut thread service when the included metric sizes match the vehicle component.

How do you choose between tap and die nut?

Use the tap for an internal thread and the hexagon die nut for an external wheel stud or bolt thread.

Can the set be used for every wheel thread?

No, it is limited to the thread sizes stated in the product data.

What should you inspect before cutting?

Check whether the thread is dirty, lightly damaged, or too damaged for safe reworking.

Where can you find hexagon die nut information?

Additional information is available here: Technical information hexagon die nuts as PDF

What is the main selection risk?

The main risk is confusing similar metric fine wheel threads, so compare size and pitch before use.

Where can you find the threading tools catalog?

You can find the threading tools catalog here: VD 23 catalog as PDF
