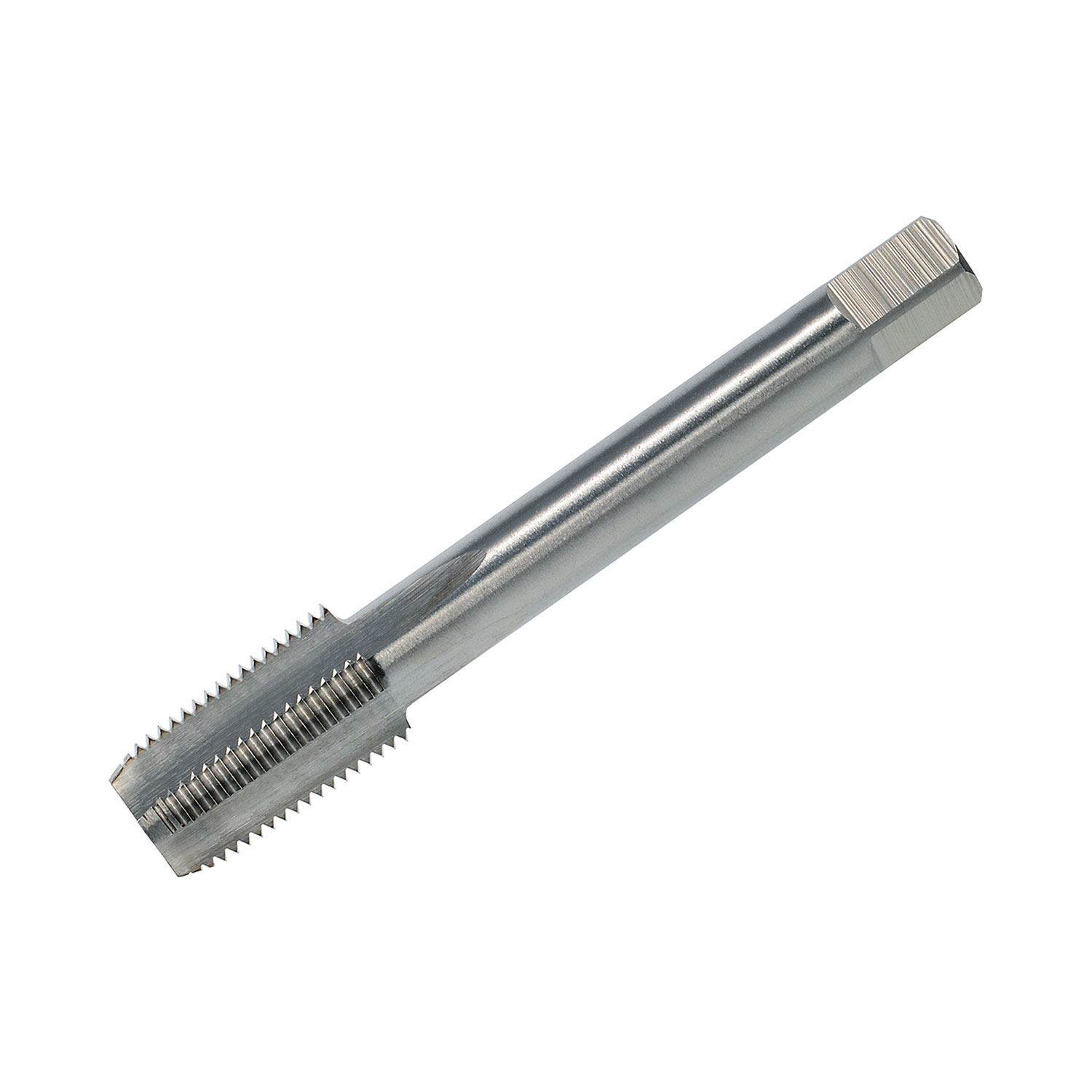

VÖLKEL Form C cutting tap made of HSS-G with straight flutes for internal thread machining.
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
VÖLKEL Form C cutting tap made of HSS-G with straight flutes for internal thread machining.
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
Rc (BSPT) tapered

Short Machine Tap Form C HSS-G - Rc (BSPT) 1/4 x 19

Item no. 63714

€9.80

in stock - more than 100 pieces available
Application

Application:

for general use

  • non abrasive material up to 900 N/mm²
  • unalloyed and low alloyed steel
  • for blind holes
  • for thread cutting by hand
Additional information
Type of thread tapered pipe thread, taper 1:16, con. 55°
Standard DIN
Form Form C
Material HSS-G
Tolerance medium
Size Rc (BSPT) 1/4 x 19
Overall length (L1) 70 mm
Thread length (L2) 25 mm
Core hole diameter (D1) 11.0 mm
Shank diameter (D2) 11.0 mm
Drive connector 9.0 mm
EAN 4022835637141
Item number 63714
Type of flute straight fluted
Application for through and blind holes
Thread standard ISO 7-1

Application:

for general use

  • non abrasive material up to 900 N/mm²
  • unalloyed and low alloyed steel
  • for blind holes
  • for thread cutting by hand
