Application

The tangless V-COIL notch thread inserts, like the familiar V-COIL inserts, are designed for reliable thread reinforcement and thread repair. However, the risk of losing the tang when breaking off is eliminated.

  • 1. drilling the core hole (or drill the thread to be repaired) with the V-COIL STI Drill
  • 2. cutting the holding thread with the V-COIL STI Tap
  • 3. The V-COIL notch thread insert must be screwed onto the installation tool.

The V-COIL notch installation tool is equipped with a spring-loaded blade which engages in the driver notch when the thread insert is screwed on, thus holding it in place. As the notches are present at both ends of the thread insert, it is not necessary to pay attention to which end of the thread insert is facing forwards in the shoring direction.

The V-COIL notch installation tools are designed with a depth stop nut, which is adjusted to the intended screw-in depth for the insert by means of a lock nut on the tool.

The thread insert is screwed into the holding thread with the V-COIL notch installation tool. Since the installation tool is equipped with a ¼" hexagon on the drive side, it can be operated with all common bit holders. This is possible both by hand and with cordless screwdrivers or even on stationary machines. Once the desired screw-in depth has been reached, the installation tool simply has to be unscrewed again. The spring-loaded blade of the V-COIL notch installation tool automatically retracts from the notch of the thread insert and releases the thread insert.

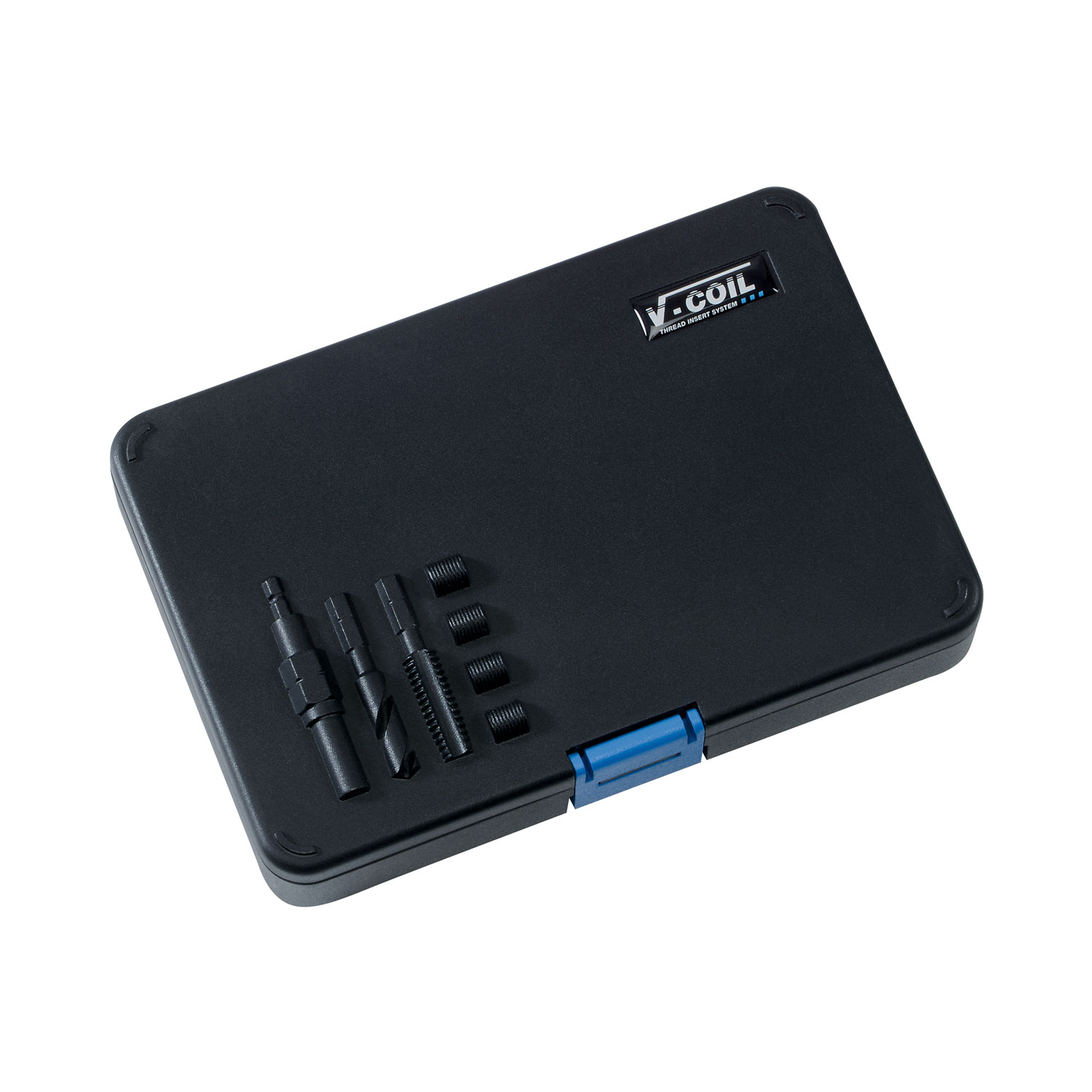

Content:

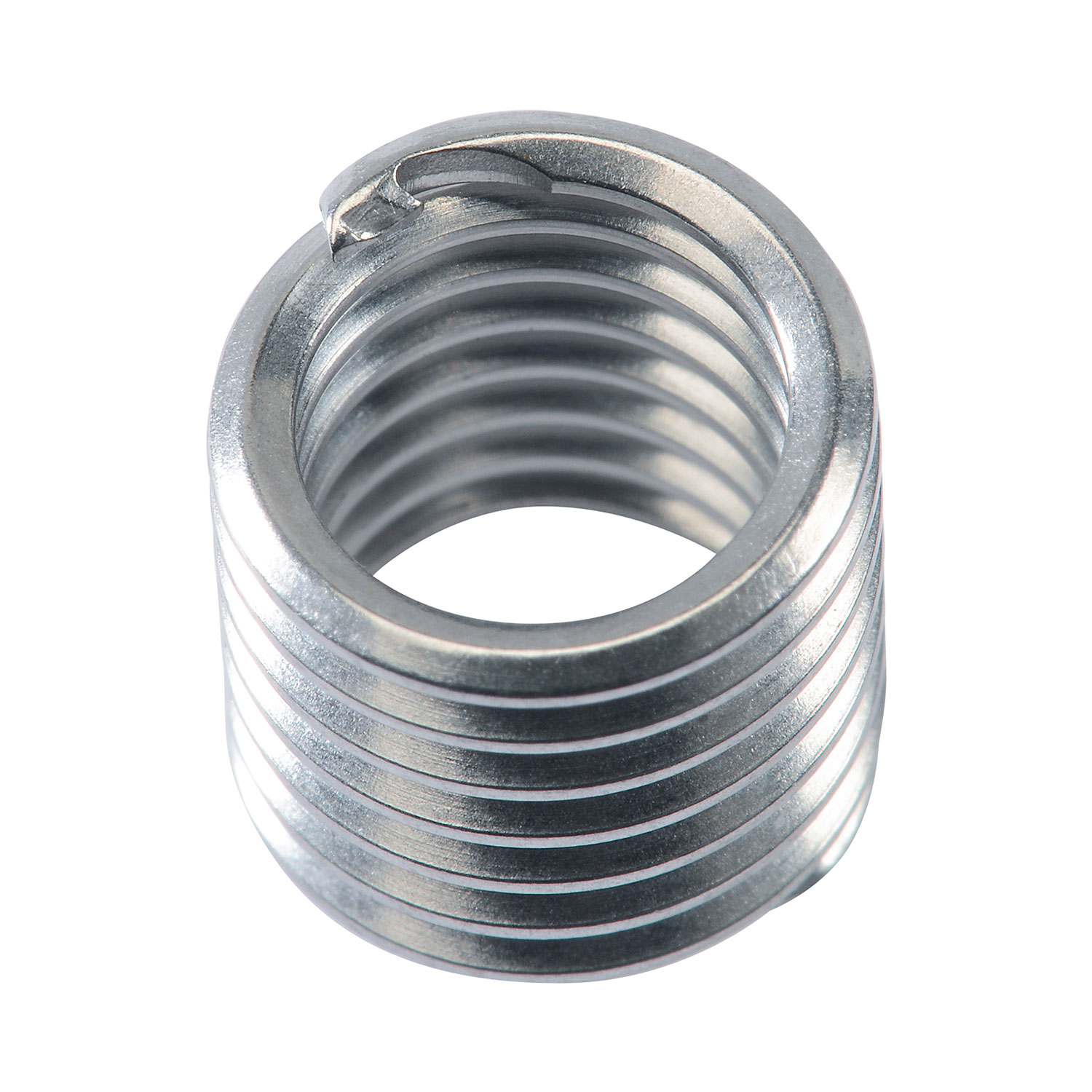

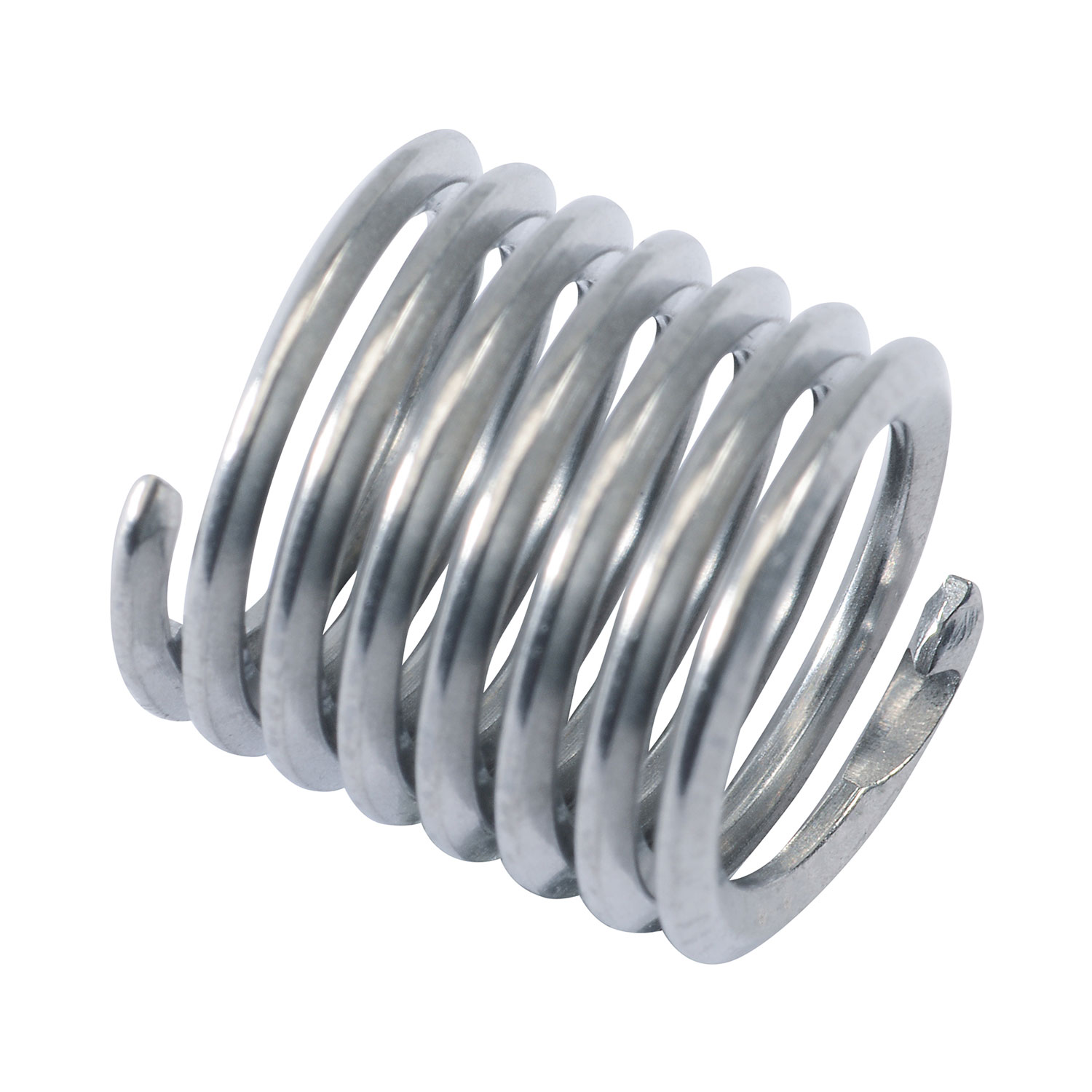

  • 10x Wire thread inserts - type SN - tangless M 5 x 0.8 - 1.5 D

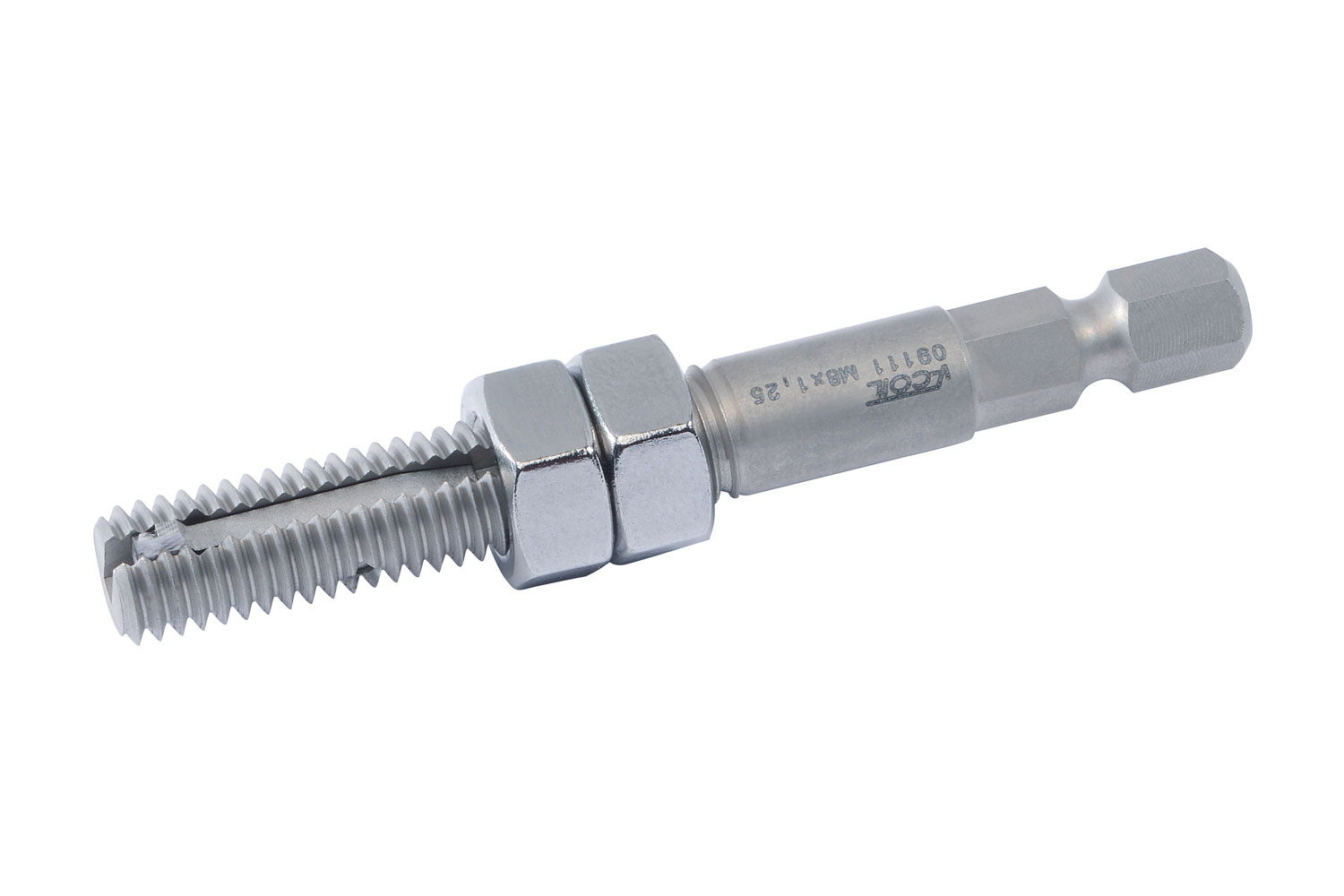

  • 1x Inserting Tool V-COIL notch M 5 x 0.8 VÖLKEL 09108

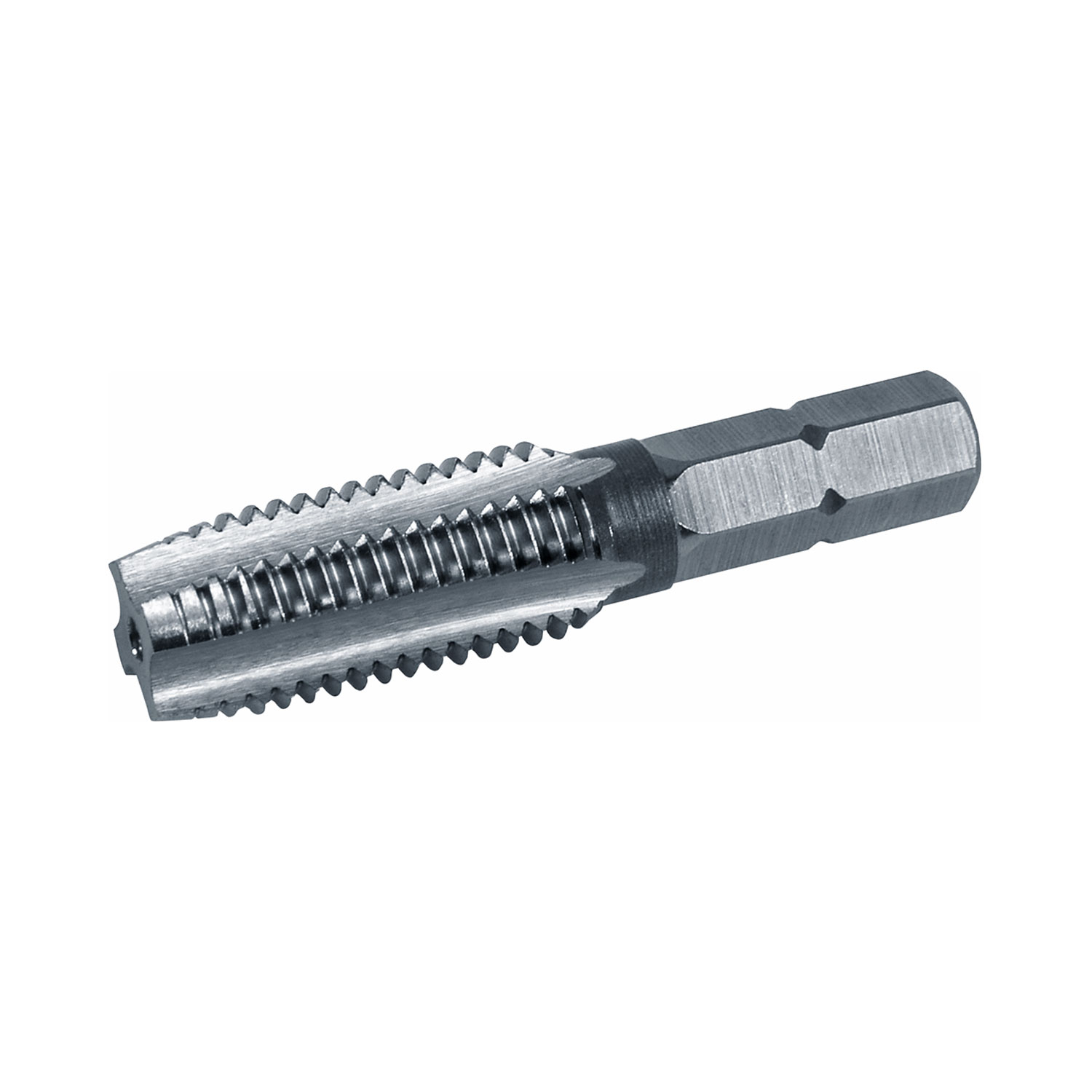

  • 1x STI HexTap V-COIL rapid machine tap Form D HSS-G - M 5 x 0.8 VÖLKEL 03093

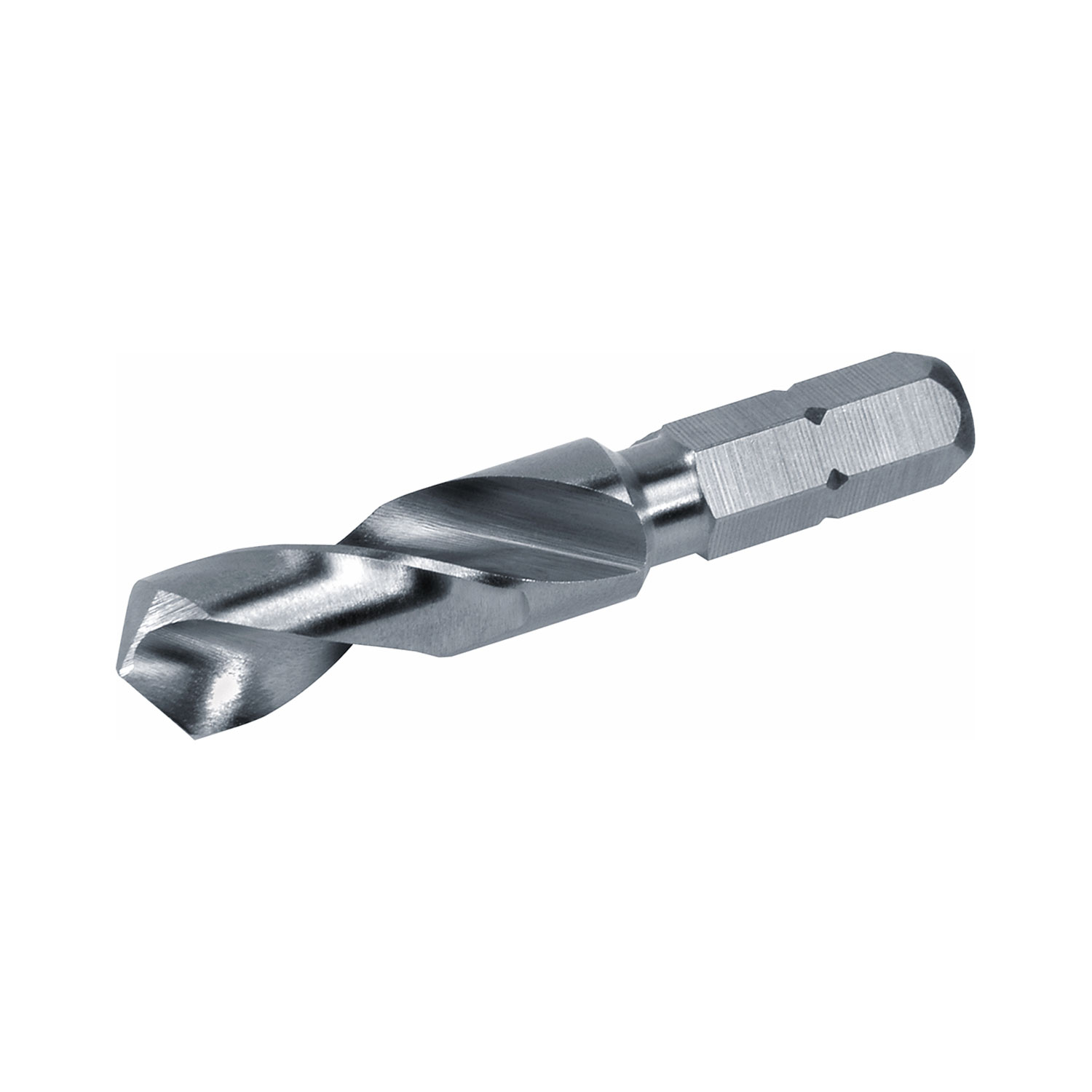

  • 1x V-COIL rapid STI-Twist Drill, 5.2 mm VÖLKEL 03083
  • 1x 1/4" Bit-Adapter
Additional information
Type of thread metric ISO-thread
EAN 4022835090083
Item number 09008
Application M 5 x 0.8
