Thread Repair Kits M 48 x 4.0 - 1.5D

• for repairing damaged internal threads with the original designation M 48 X 4.0
• for V-COIL repair workflows using coordinated preparation and insert installation steps
• for maintenance, repair workshop, field service, and mechanical engineering use
• for selecting a complete repair route by thread size and insert length

Note Use the kit as a process sequence and do not mix components from different thread sizes unless the repair data confirms the match.

• Kit format supports a coordinated thread repair workflow for one original thread size.
• Thread designation M 48 X 4.0 keeps repair selection tied to the damaged internal thread.
• Insert length in the title supports repair planning where the length is specified.
• Process structure helps separate drilling, STI tapping, insert installation, and final checking.

• A repair kit still requires correct sequence and alignment, so do not skip component checks before starting the repair.

1. Identify the damaged internal thread as M 48 X 4.0.
2. Check that the repair kit variant matches the repair requirement.
3. Prepare the hole according to the repair sequence.

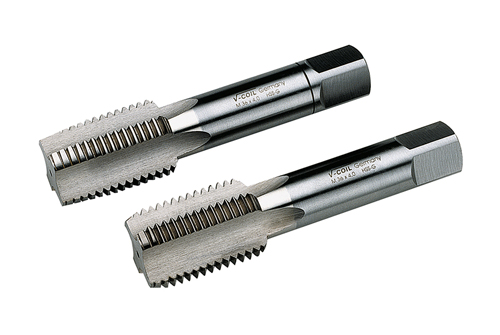

4. Cut the STI receiving thread with the matching tap.
5. Clean the prepared receiving thread.

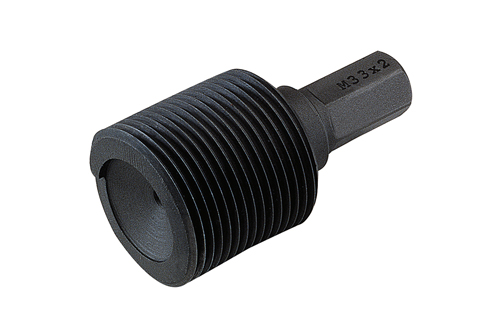

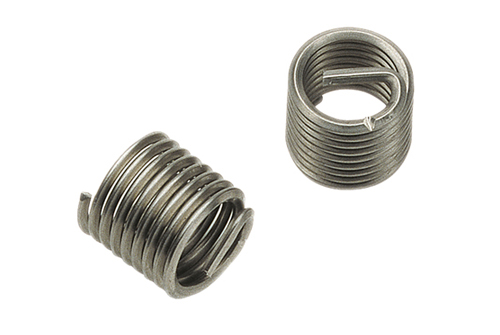

6. Install the wire thread insert with the suitable inserting tool.
7. Remove the tang where the selected system requires it.
8. Inspect the repaired thread before reassembly.

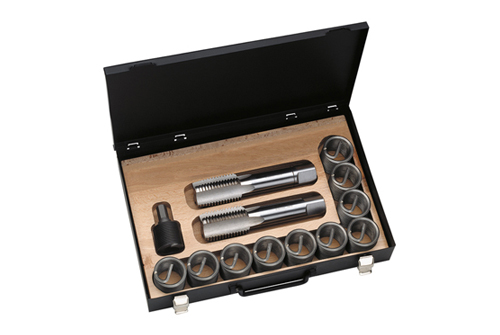

• 1 set Thread Repair Kits M 48 x 4.0 - 1.5D

• Product type: V-COIL thread repair kit
• Thread system: M
• Thread designation: M 48 X 4.0
• Insert length: 1.5D
• Repair target: internal threads

What does this kit repair?

It repairs an internal thread for M 48 X 4.0 when the original thread size matches the product title.

How do you use the kit components?

Use the kit as a sequence of preparation, STI tapping, insert installation, tang handling where required, and inspection.

How do you select the correct repair kit?

Match original thread size, pitch, insert length, and repair variant before opening or mixing components.

Is the kit for external threads?

No, V-COIL repair kits restore internal threads and external threads require a different tool concept.

Where can you find V-COIL repair information?

Additional V-COIL repair guidance is available here: Technical information V-COIL thread repair as PDF

What should you inspect before assembly?

Inspect the repaired internal thread and check that the screw engages smoothly without forcing.

Where can you find the V-COIL catalog?

You can find the thread repair catalog here: VC 23 catalog as PDF
