Thread Repair Kits M 52 x 5.0 - 1.5D

• Repair worn or damaged M52 × 5.0 threads permanently and precisely
• Ideal for reinforcing threads in materials with low shear strength (e.g. aluminium, cast iron)
• Creates new, high-strength, wear-resistant internal threads
• Corrosion and temperature resistant stainless steel inserts
• Easy to use by hand – no special machinery required
• Durable metal case – organized, protected, ready to use

Result: Strong, precise threads that withstand repeated assembly and disassembly.

1. Preparation: Clean the damaged thread, slightly countersink, and secure the workpiece.
2. Cut the STI thread: Use the HSS-G STI Hand Tap M52 × 5.0 with cutting oil, cutting evenly and breaking the chip regularly.
3. Insert installation: Screw in the wire insert using the 3/4″ inserting tool, about a ¼ turn below the surface.
4. Remove tang: Break off the tang cleanly with the integrated tang breaker.
5. Check: Verify the repaired thread with a test bolt or gauge.

Tip: Apply sufficient lubrication – it reduces torque and improves the surface finish.

• Brand: V-COIL
• Nominal Size: M 52 × 5.0
• Repair Length: 1.5D
• Insert Material: Stainless Steel
• Tolerance: ISO 2 (6H)
• Standard: DIN 8140, Type S (Free Running)
• Packaging: Metal Case
• Article Number: 04241

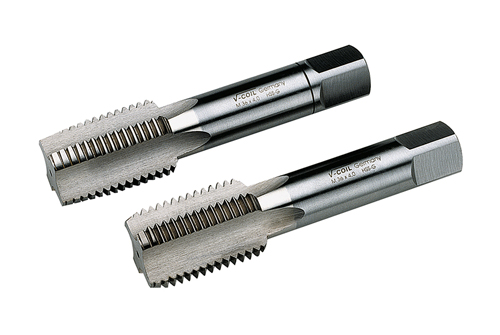

• 1× STI Hand Tap ISO 529 HSS-G – M 52 × 5.0 (03074)

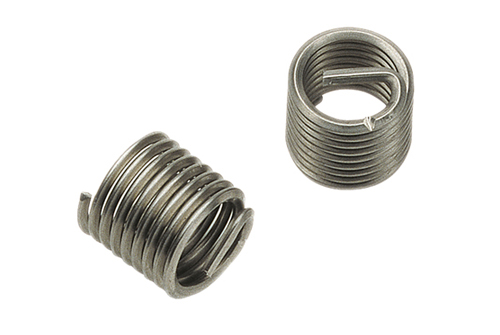

• 10× V-COIL Wire Thread Inserts Type S – M 52 × 5.0 – 1.5 D (07390)

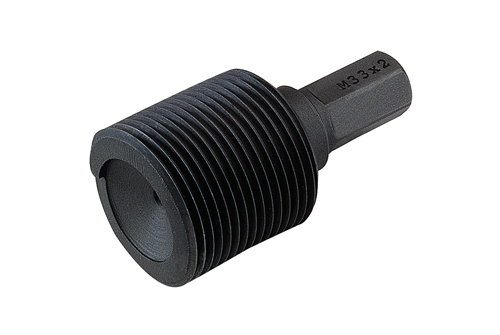

• 1× V-COIL Inserting Tool (Drive Connector 3/4″) – M 52 × 5.0 (08048)

Can I use this kit for aluminium?
Yes, the stainless steel inserts are ideal for soft materials and provide a durable thread reinforcement.

What does 1.5D mean?
The insert length is 1.5 times the nominal diameter, ensuring increased load-bearing capacity.

Do I need special tools?
No, all required tools are included. The repair can be done by hand.

How durable is the repair?
Properly installed inserts create a permanent, high-strength thread connection.

Do I need to remove the tang?
Yes, remove it after installation to allow full through-thread operation.

Are longer inserts available?
Yes, 2D and 3D inserts are available separately and compatible with the same STI thread.
