Isolated, bright micro machine tap with spiral flutes and hex shank, specialized for cutting very fine threads.

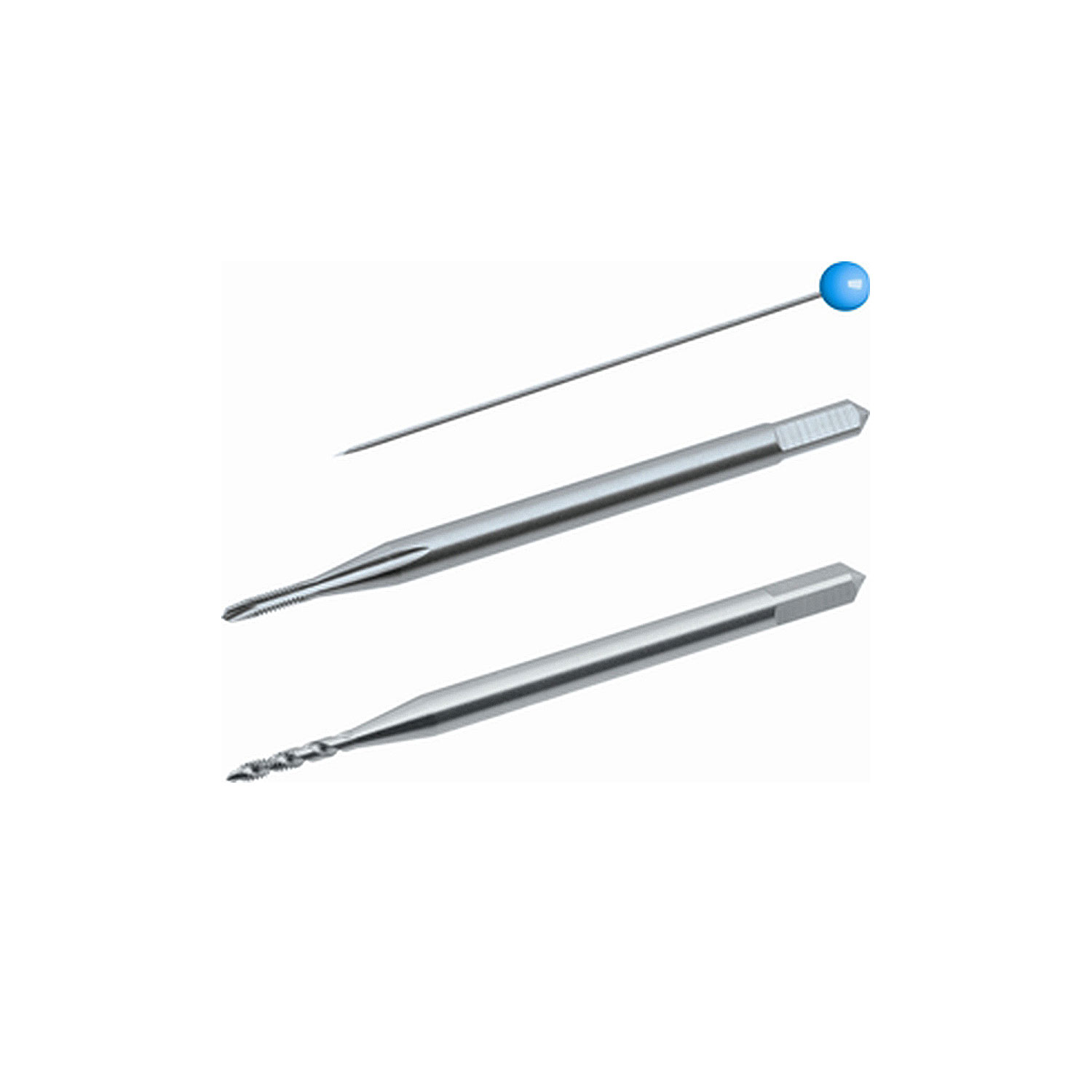

Two bright taps with hex shanks, one with a straight flute and one with a spiral flute, next to a pin for size comparison.

Isolated, bright micro machine tap with spiral flutes and hex shank, specialized for cutting very fine threads.

Two bright taps with hex shanks, one with a straight flute and one with a spiral flute, next to a pin for size comparison.

Machine Tap DIN 371 Form C 35° Spiral Flute HSSE - M 1 x 0.25

Item no. 37702

€24.20

in stock - more than 10 pieces available

VÖLKEL delivers exclusively to specialized dealers. Online you can buy VÖLKEL products here.

The prices are in Euro plus VAT and shipping, insurance and packaging costs.

Application

Advantages:

safe production process and precise cutting of micro-threads M1 - M1.8
for all-purpose
best industrial quality
immediately available frostock

Application:

for general use

non abrasive material up to 900 N/mm²
unalloyed and low alloyed steel
Form C 35° RSP for blind holes

Additional information

Type of thread	metric ISO-thread
Standard	DIN 371
Form	Form C
Material	HSSE
Tolerance	ISO2 (6H)
Size	M 1 x 0.25
Overall length (L1)	40 mm
Thread length (L2)	4 mm
Core hole diameter (D1)	0.75 mm
Shank diameter (D2)	2.5 mm
Drive connector	2.1 mm
EAN	4022835377023
Item number	37702
Type of flute	35° Spiral Flute
Application	for blind holes
Thread standard	DIN 13

Advantages:

safe production process and precise cutting of micro-threads M1 - M1.8
for all-purpose
best industrial quality
immediately available frostock

Application:

for general use

non abrasive material up to 900 N/mm²
unalloyed and low alloyed steel
Form C 35° RSP for blind holes
