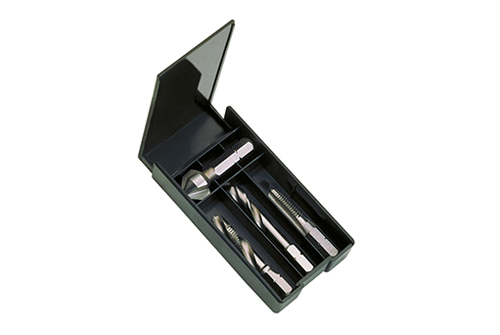

TriBit² Combined and special tools, HSS-G, M 10 x 1.5 is a compact HSS-G combined bit for preparation and threading work on M 10 x 1.5. Use it in assembly or service situations where the tool path must stay aligned from hole preparation to thread cutting.
Metric ISO threads use the M designation and are common in mechanical engineering, maintenance, and standard fastening work. Confirm that the combined tool size, workpiece material, and holder setup fit the planned operation before starting the first cut.
- Prepare and cut the specified thread in a compact combined bit workflow when the product name calls for a combined or special tool.
- Use the tool for assembly and service work where drill preparation, entry control, and tapping must remain aligned in one workflow.
- Keep the bit straight in the drive holder so the prepared hole and the thread axis remain coaxial.
- Process: manual driving or assisted driving depending on your holder and machine setup
- Use: thread cutting, re tapping, and thread cleaning depending on condition
Note Verify the workpiece preparation, thread designation, and holder alignment before starting. Stop if torque rises suddenly or if the tool no longer follows the hole axis.
- The combined tool concept reduces tool changes when drilling and tapping belong to the same workflow.
- A compact bit format supports mobile assembly and maintenance work.
- The HSS-G execution is stated in the product name and supports controlled product selection.
- The thread designation links the tool directly to the required metric thread.
Drawbacks
- The bit based tool must be driven in a secure holder because wobble can damage the thread.
- Not intended to replace a rigid production tapping setup for high volume machining.
- Confirm the thread designation and the material before using the combined tool.
- Secure the bit in a holder that supports straight guidance.
- Position the tool square to the workpiece surface.
- Start the drilling or preparation section with controlled pressure.
- Continue into the tapping section only while the tool remains aligned.
- Use lubrication suitable for the material and remove chips from the hole.
- Retract the tool under control after the thread is complete.
- Clean the hole and verify thread engagement.
- 1 piece TriBit² Combined and special tools, HSS-G, M 10 x 1.5
- Product type: Combined bit
- Tool material: HSS-G
- Thread designation: M 10 x 1.5
- Thread system: Metric ISO
- How do you select the correct variant
- Select M 10 x 1.5 only when it matches the drawing, mating component, and required process. Also check the tool type, material designation, and holder or machine setup before use.
- What does Metric ISO mean in this product context
- Metric ISO threads use the M designation and are common in mechanical engineering, maintenance, and standard fastening work.
- Which holder logic matters for bit based tools
- The bit must sit securely in the drive holder so torque is transmitted straight into the tool and not through side load.
- When should you prefer a rigid machine tapping setup
- Choose a rigid production tapping setup when the process requires validated cycle time, high repetition, or strict machine parameters.
- What does HSS-G tell you
- HSS-G is the tool material or execution stated in the product data. Use it as a selection fact together with thread designation and tool geometry.
- Where can you find technical information for combined bits
- Technical information combined bits as PDF
- What should you inspect after the operation
- Inspect the thread or prepared hole for burrs, chips, and functional fit before the part moves to assembly.
- Where can you find more product and application information in a catalog
- VD 23 catalog as PDF
