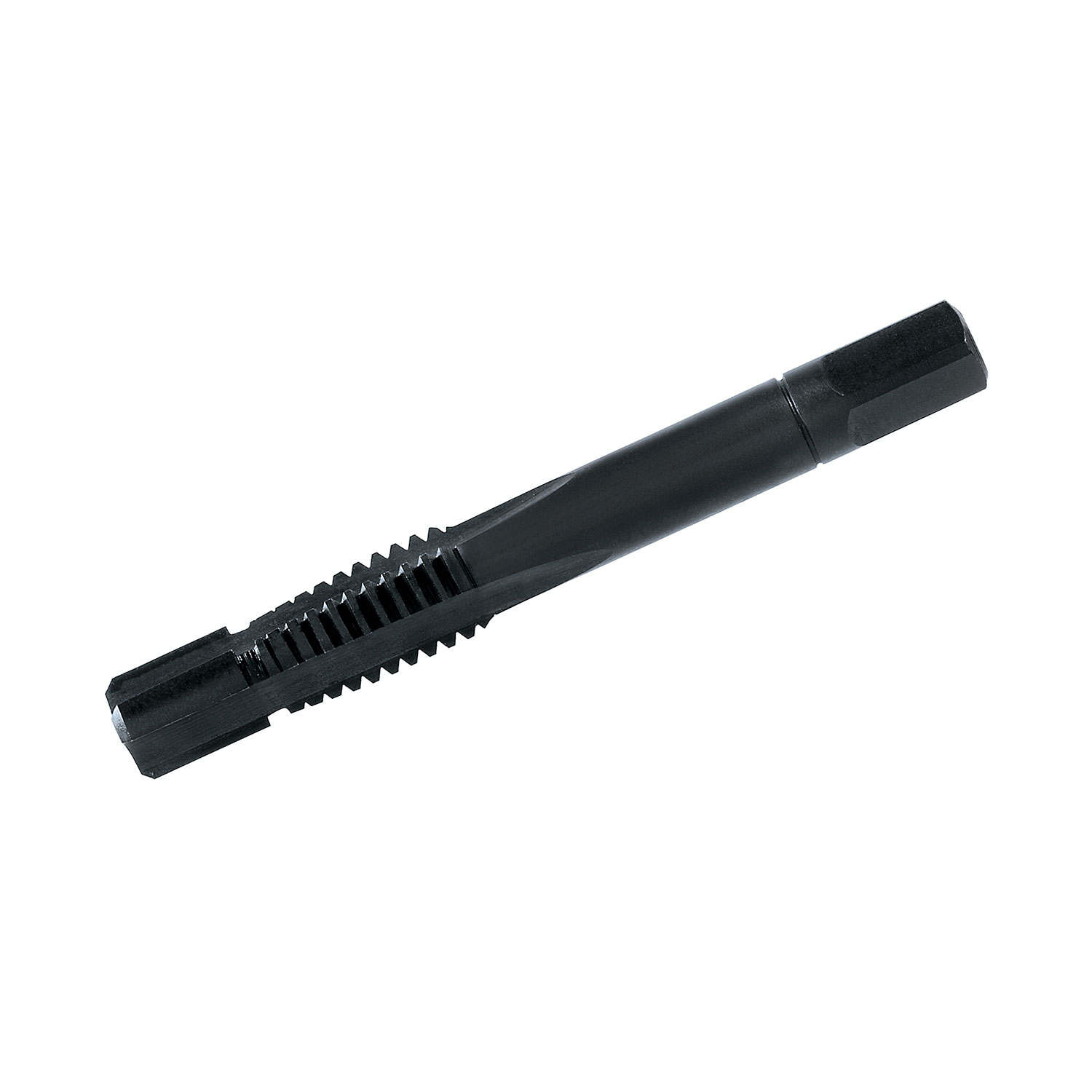

HSS finishing tap with square shank designed for controlled and precise internal threading.
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
HSS finishing tap with square shank designed for controlled and precise internal threading.
Technical drawing of a VÖLKEL thread tap with labeled diameters and lengths.
M (metric)

Hand Tap Rougher DIN 352 HSSE VAP piloted - M 5 x 0.8

Item no. 57734-1

€8.90

in stock - more than 100 pieces available
Application

Application:

wear resistant steel up to 1400 N/mm²

  • high alloy steel
  • heat resistant steel
  • stainless steel
  • alloy tool steel
  • cast iron

VAP-coating:

  • improved adhesion of the coolant and Lubricant
  • reduces tearing of the lubricating filand the formation of cold welding
Additional information
Type of thread metric ISO-thread
Standard DIN 352
Material HSSE
Tolerance ISO2 (6H)
Size M 5 x 0.8
Overall length (L1) 50 mm
Thread length (L2) 16 mm
Core hole diameter (D1) 4.2 mm
Shank diameter (D2) 6.0 mm
Drive connector 4.9 mm
Item number 57734-1
Type of flute straight fluted
Application for through and blind holes
Thread standard DIN 13
Coating VAP

Application:

wear resistant steel up to 1400 N/mm²

  • high alloy steel
  • heat resistant steel
  • stainless steel
  • alloy tool steel
  • cast iron

VAP-coating:

  • improved adhesion of the coolant and Lubricant
  • reduces tearing of the lubricating filand the formation of cold welding
