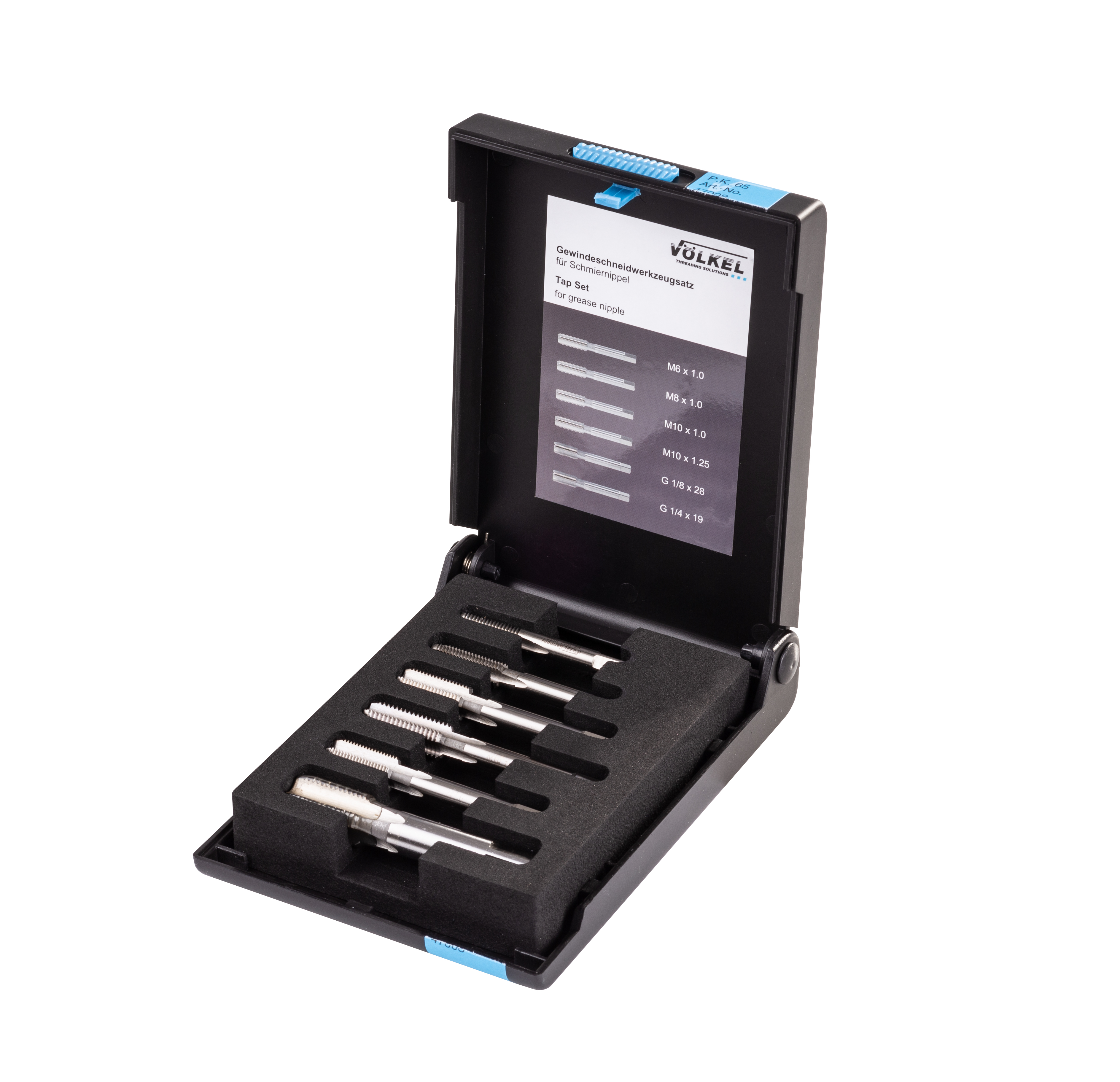

VÖLKEL tap set for grease nipples with six thread taps in a plastic case.

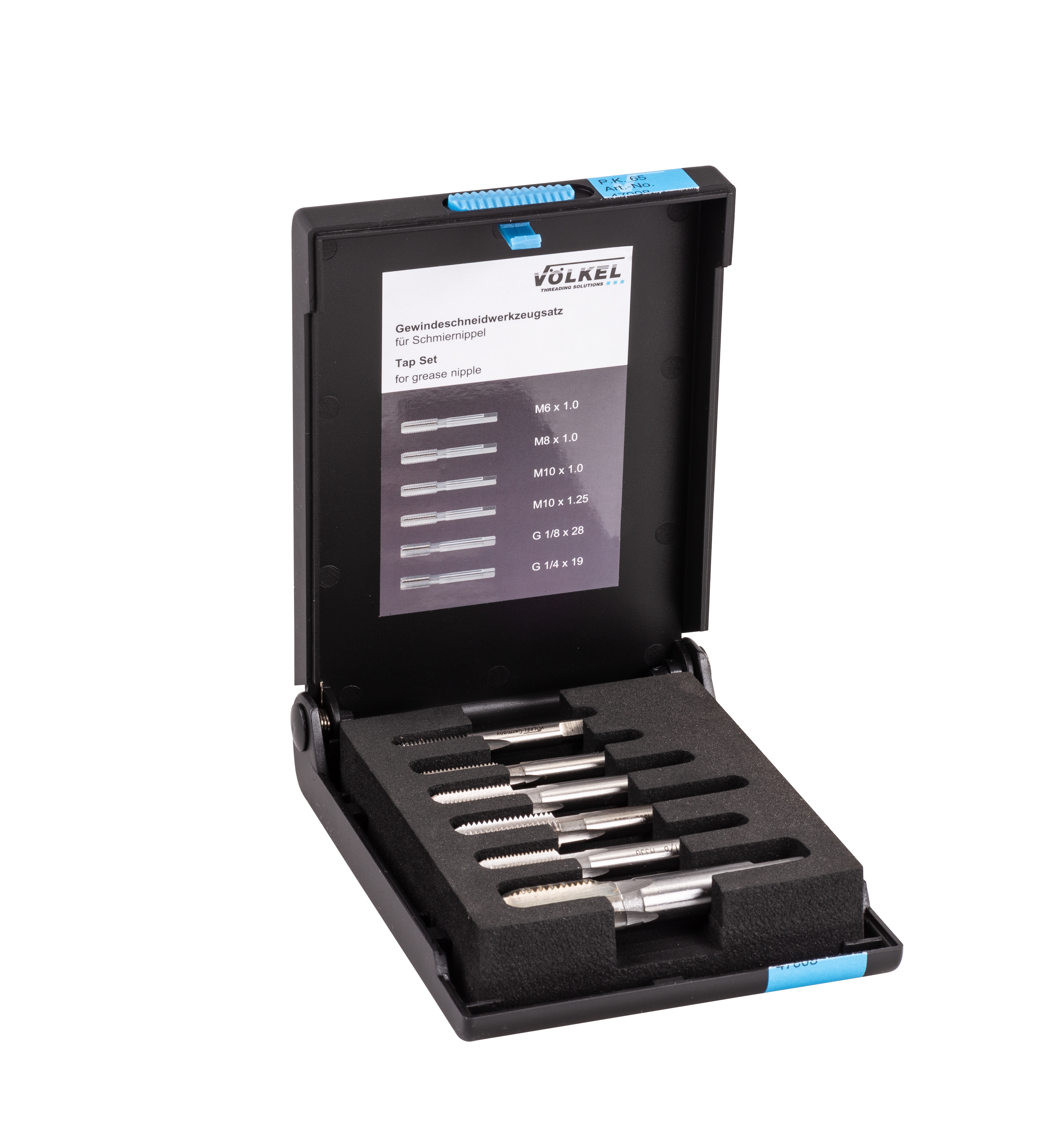

Thread cutting kit for grease nipples from M6 to G 1/4, neatly arranged in foam insert.
VÖLKEL finishing tap with metal thread-cutting section and square end for internal threads.
Detailed view of a VÖLKEL HSS-G finishing hand tap, used for clean and precise final thread cutting.
Metal thread tap by VÖLKEL with square drive and smooth shank.

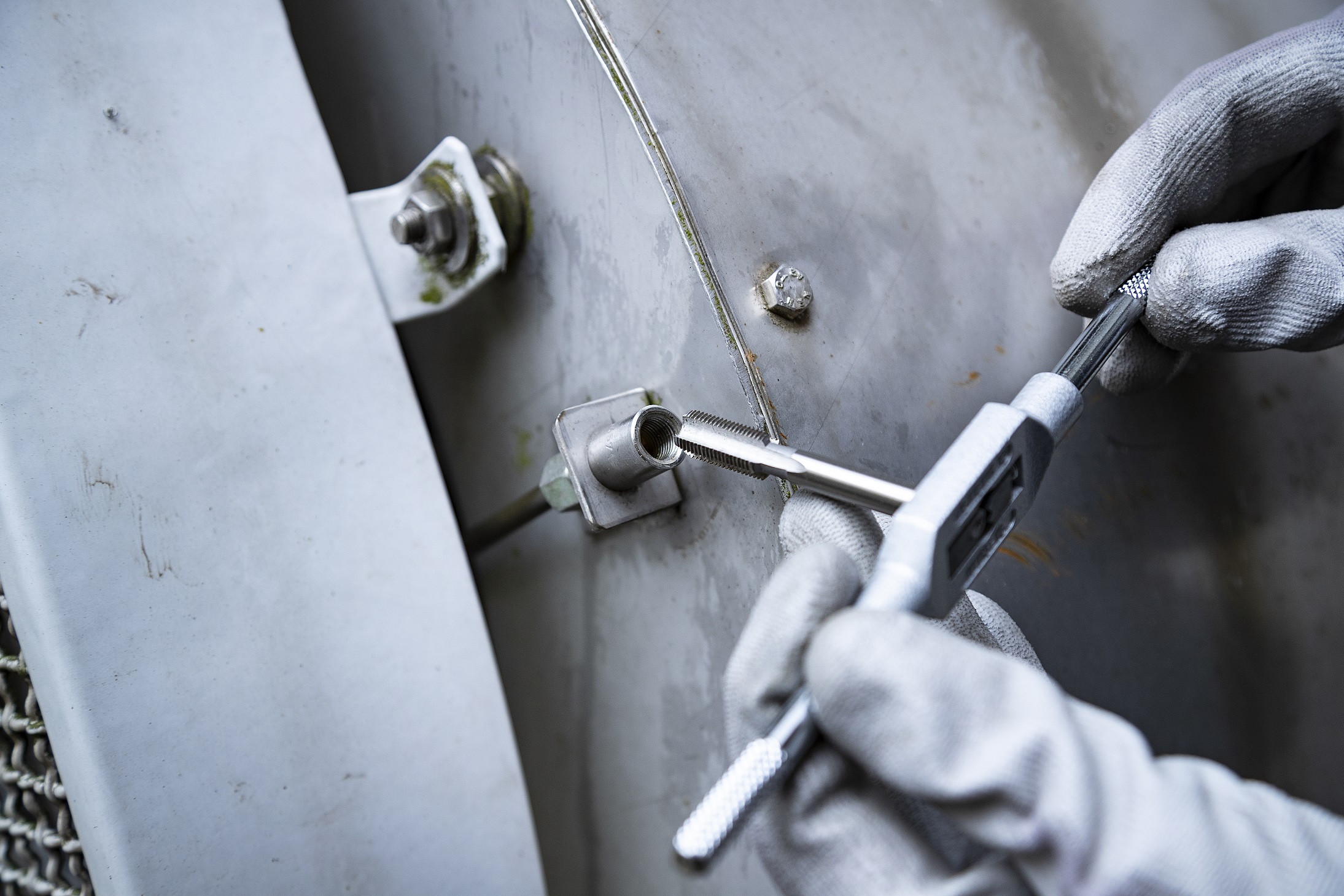

Cutting grease nipple thread with VÖLKEL threading tool, step 2 close-up.

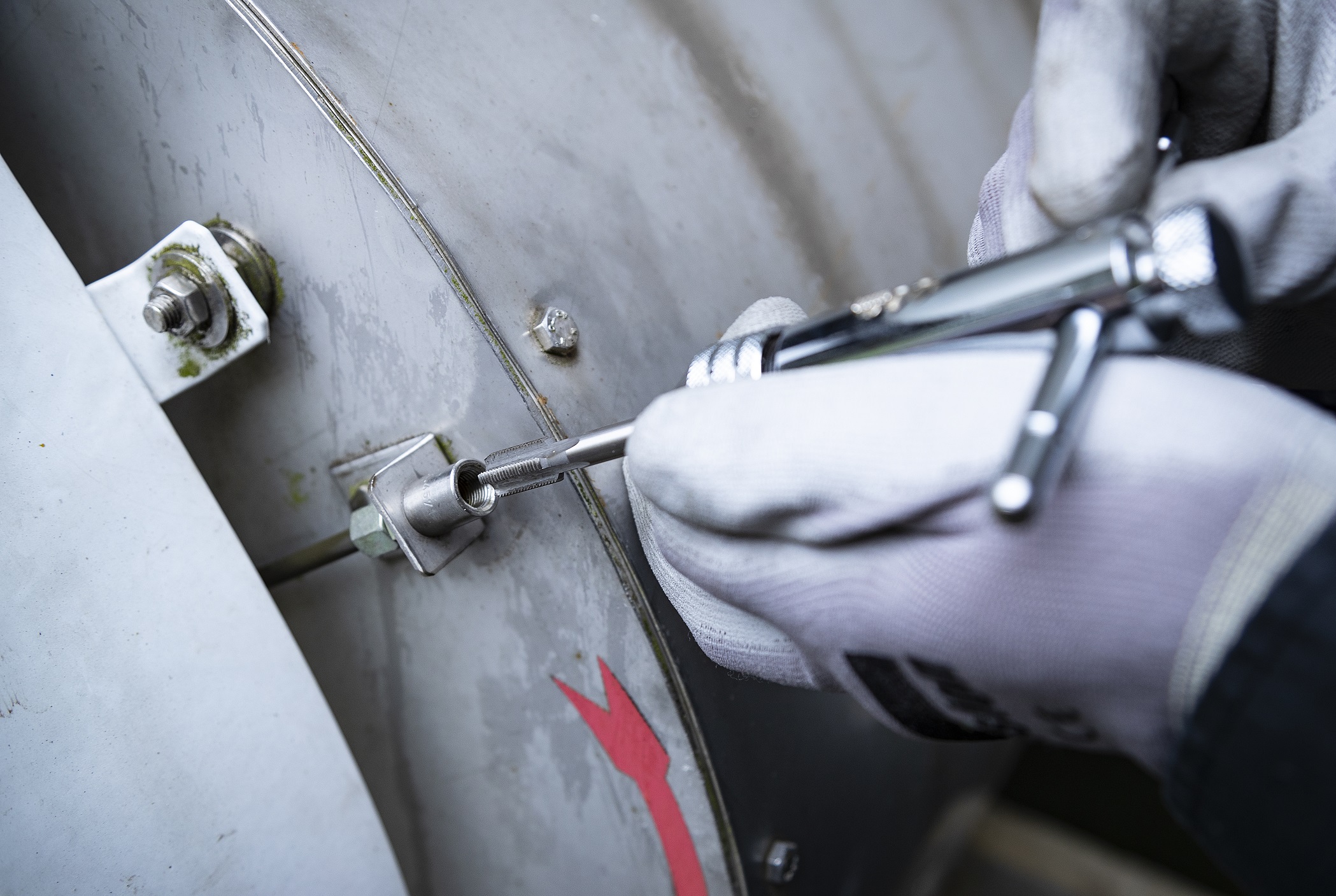

Step 1: Thread cutting with VÖLKEL tool on metal part for grease nipple installation.
VÖLKEL grease nipple after thread cutting, mounting phase step 3.
VÖLKEL tap set for grease nipples with six thread taps in a plastic case.
Thread cutting kit for grease nipples from M6 to G 1/4, neatly arranged in foam insert.
VÖLKEL finishing tap with metal thread-cutting section and square end for internal threads.
Detailed view of a VÖLKEL HSS-G finishing hand tap, used for clean and precise final thread cutting.
Metal thread tap by VÖLKEL with square drive and smooth shank.
Cutting grease nipple thread with VÖLKEL threading tool, step 2 close-up.
Step 1: Thread cutting with VÖLKEL tool on metal part for grease nipple installation.
VÖLKEL grease nipple after thread cutting, mounting phase step 3.
Tap & Die sets

Tap Set for grease nipples

Item no. 47008

€39.00

in stock - more than 100 pieces available
Application

You use this tap set for grease nipple thread service where several common lubrication-point threads must be available in one compact set. It is intended for maintenance work on machinery, vehicles, agricultural equipment, and service parts with grease nipple connections.

The set should be selected by the existing grease nipple thread and by the required operation, such as re-tapping or cleaning an internal thread. Use the matching tap only after checking the thread system and size on the component.

Application
  • for workshop thread service where several related tools are required in one case
  • for the stated thread range M / BSP M6-M8x1-M10x1-M10x1.25-G1/8-G1/4 when it matches the component being serviced
  • for maintenance and repair work where internal and external thread operations must be separated by tool type
  • Process: manual driving or assisted driving depending on your holder and machine setup
  • Use: thread cutting, re tapping, and thread cleaning depending on condition

Note Select the individual tool by the original thread on the component and do not mix different thread systems inside one repair step.

Benefits
  • The set groups common grease nipple thread tools for service and maintenance tasks.
  • Different thread systems in one case support work on varied lubrication points.
  • HSS-G material is stated in the product data and supports precise cutting in suitable materials.
  • Case packaging helps keep the small service taps available at the maintenance bench.
Drawbacks
  • The set cannot identify the existing grease nipple thread for you, so check the component thread before selecting a tap.

Step by step
  1. Identify the original thread on the component before opening the set.
  2. Choose the tool group for internal or external thread work.
  3. Select the exact size that matches the component thread.
  4. Clamp the tool in a suitable holder or drive setup.
  5. Apply suitable cutting fluid for the material and repair situation.
  6. Cut, re-tap, or clean the thread with controlled alignment.
  7. Inspect the thread before returning the component to service.
  8. Clean the tools and return them to the case.

Scope of supply
  • 1 set Tap Set for grease nipples
  • 1 piece kunststoff-kassette

Technical features
  • Product type: tap set
  • Thread system: M / BSP
  • Thread designation: M / BSP M6-M8x1-M10x1-M10x1.25-G1/8-G1/4
  • Material: HSS-G
  • Direction: RH
  • Packaging: Kunststoff-Kassette
  • Package quantity: 1

Frequently asked questions (FAQ)

When do you choose this tap set?

Choose it for grease nipple thread service when the included thread systems match the lubrication point.

How do you select the correct tap from the set?

Select the tap by the existing grease nipple thread and the required internal-thread operation.

Can you use one tap for all grease nipples?

No, grease nipple connections can use different thread systems and sizes.

What should you check before re-tapping?

Check whether the thread is repairable, aligned, and free from dirt before cutting again.

What is the role of the case?

The case keeps the grease nipple service taps together so the correct size can be found quickly.

Where can you find hand tap information?

Additional hand tap information is available here: Technical information hand taps as PDF

Where can you find the threading tools catalog?

You can find the threading tools catalog here: VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the contact form.

In this category: Threading tools

Additional information
Type of thread metric ISO-thread, G(BSP)
Material HSS-G
Packing in plastic case
EAN 4022835470083
Item number 47008
